Yesterday’s Tomorrow - Developer Guide

By : Team CS2103JAN2017-F11-B3      Since: Jan 2017      Licence: MIT

1. Setting Up
2. Design
3. Implementation
4. Testing
5. Dev Ops

• Appendix A: User Stories
• Appendix B: Use Cases
• Appendix C: Non Functional Requirements
• Appendix D: Glossary
• Appendix E : Product Survey

1. Setting up

1.1. Prerequisites

1. JDK 1.8.0_60 or later


   Having any Java 8 version is not enough.
   This app will not work with earlier versions of Java 8.

2. Eclipse IDE
3. e(fx)clipse plugin for Eclipse (Do the steps 2 onwards given in this page)
4. Buildship Gradle Integration plugin from the Eclipse Marketplace
5. Checkstyle Plug-in plugin from the Eclipse Marketplace

1.2. Importing the project into Eclipse

1. Fork this repo, and clone the fork to your computer
2. Open Eclipse (Note: Ensure you have installed the e(fx)clipse and buildship plugins as given in the prerequisites above)
3. Click File > Import
4. Click Gradle > Gradle Project > Next > Next
5. Click Browse, then locate the project’s directory
6. Click Finish

• If you are asked whether to ‘keep’ or ‘overwrite’ config files, choose to ‘keep’.
• Depending on your connection speed and server load, it can even take up to 30 minutes for the set up to finish (This is because Gradle downloads library files from servers during the project set up process)
• If Eclipse auto-changed any settings files during the import process, you can discard those changes.

1.3. Configuring Checkstyle

1. Click Project -> Properties -> Checkstyle -> Local Check Configurations -> New...
2. Choose External Configuration File under Type
3. Enter an arbitrary configuration name e.g. taskmanager
4. Import checkstyle configuration file found at config/checkstyle/checkstyle.xml
5. Click OK once, go to the Main tab, use the newly imported check configuration.
6. Tick and select files from packages, click Change..., and select the resources package
7. Click OK twice. Rebuild project if prompted

Note to click on the files from packages text after ticking in order to enable the Change... button

1.4. Troubleshooting project setup

Problem: Eclipse reports compile errors after new commits are pulled from Git

• Reason: Eclipse fails to recognize new files that appeared due to the Git pull.
• Solution: Refresh the project in Eclipse:
  Right click on the project (in Eclipse package explorer), choose Gradle -> Refresh Gradle Project.

Problem: Eclipse reports some required libraries missing

• Reason: Required libraries may not have been downloaded during the project import.
• Solution: Run tests using Gradle once (to refresh the libraries).

2. Design

2.1. Architecture

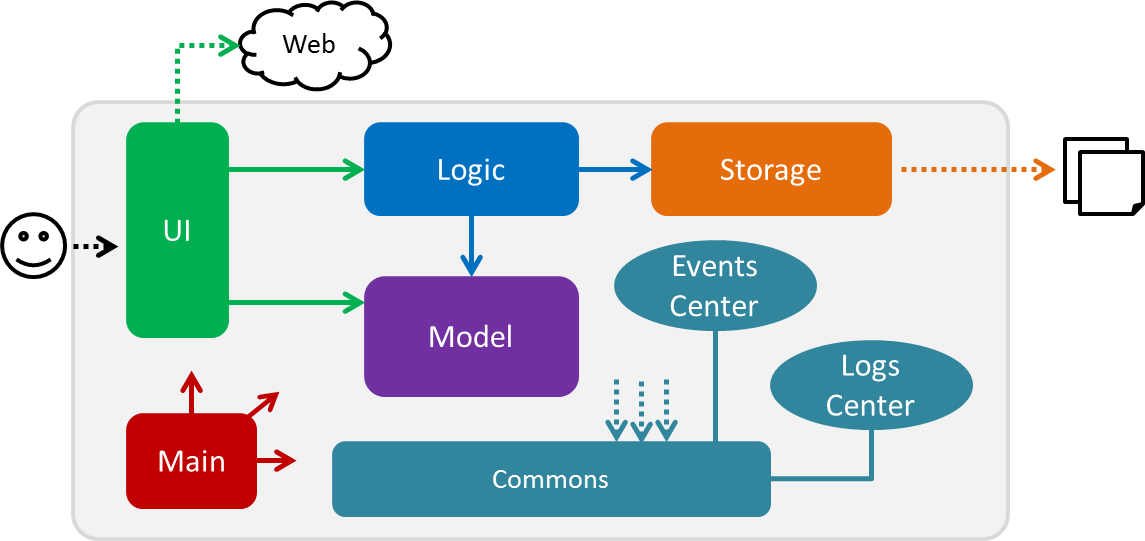

Figure 2.1.1 : Architecture Diagram

The Architecture Diagram given above explains the high-level design of the App. Given below is a quick overview of each component.

Tip: The .pptx files used to create diagrams in this document can be found in the diagrams folder. To update a diagram, modify the diagram in the pptx file, select the objects of the diagram, and choose Save as picture.

Main has only one class called MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup method where necessary.

Commons represents a collection of classes used by multiple other components. Two of those classes play important roles at the architecture level.

• EventsCenter : This class (written using Google’s Event Bus library) is used by components to communicate with other components using events (i.e. a form of Event Driven design)
• LogsCenter : Used by many classes to write log messages to the App’s log file.

The rest of the App consists of four components.

• UI : The UI of the App.
• Logic : The command executor.
• Model : Holds the data of the App in-memory.
• Storage : Reads data from, and writes data to, the hard disk.

Each of the four components

• Defines its API in an interface with the same name as the Component.
• Exposes its functionality using a {Component Name}Manager class.

For example, the Logic component (see the class diagram given below) defines it’s API in the Logic.java interface and exposes its functionality using the LogicManager.java class.

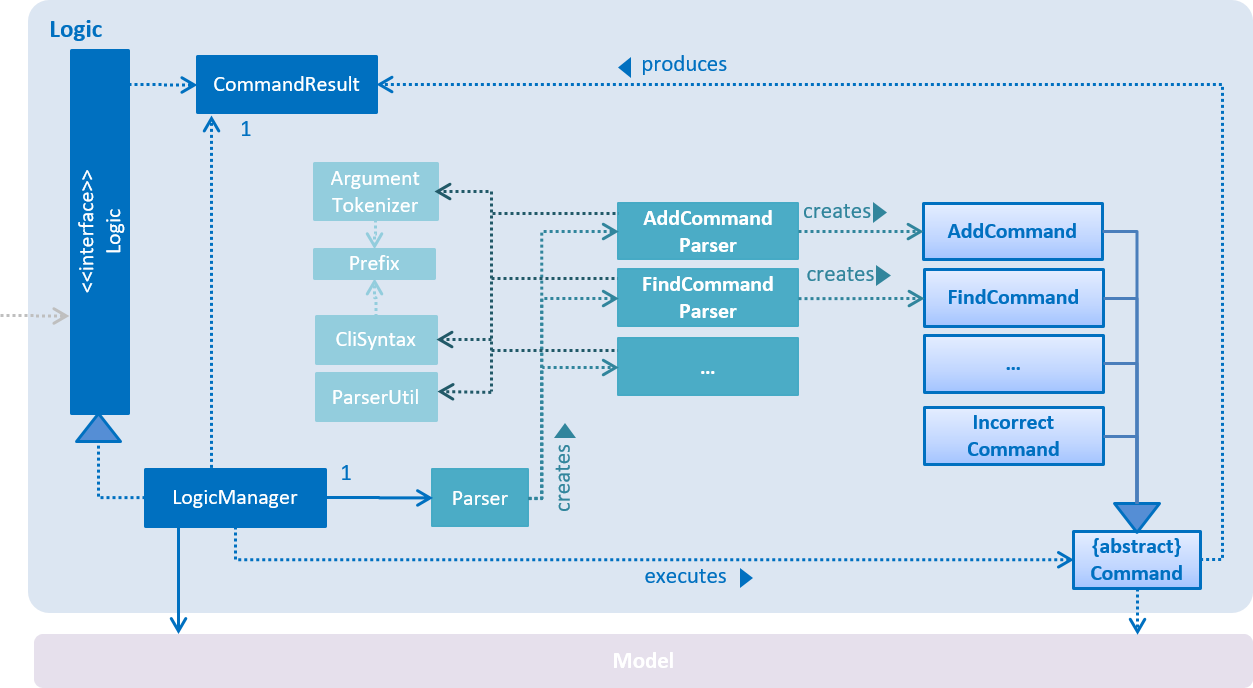

Figure 2.1.2 : Class Diagram of the Logic Component

Events-Driven nature of the design

The Sequence Diagram below shows how the components interact for the scenario where the user issues the command delete 1.

<img src=”images\SDforDelete

.png” width=”800”>
Figure 2.1.3a : Component interactions for delete 1 command (part 1)

Note how the Model simply raises a TaskManagerChangedEvent when the Task Manager data are changed, instead of asking the Storage to save the updates to the hard disk.

The diagram below shows how the EventsCenter reacts to that event, which eventually results in the updates being saved to the hard disk and the status bar of the UI being updated to reflect the ‘Last Updated’ time.

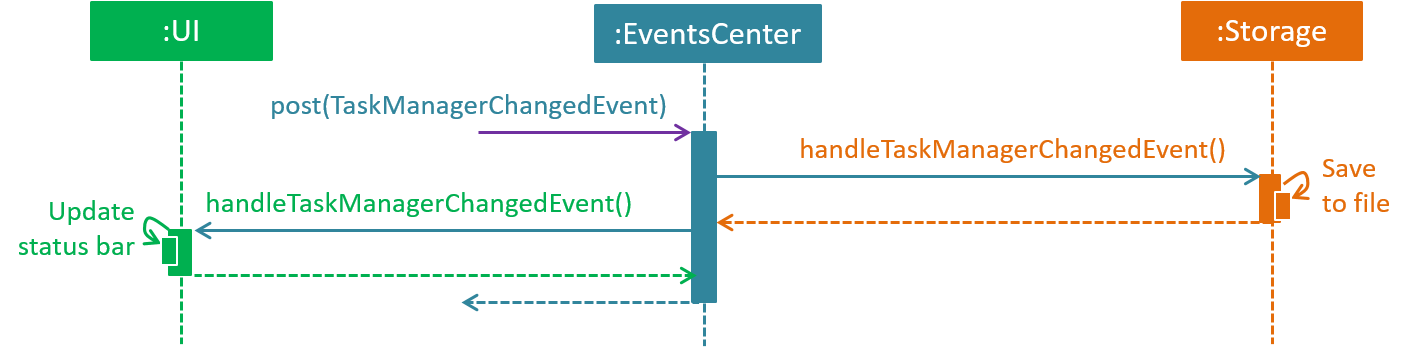

Figure 2.1.3b : Component interactions for delete 1 command (part 2)

Note how the event is propagated through the EventsCenter to the Storage and UI without Model having to be coupled to either of them. This is an example of how this Event Driven approach helps us reduce direct coupling between components.

The sections below give more details of each component.

2.2. UI component

Author: LEUNG Cheuk Ting

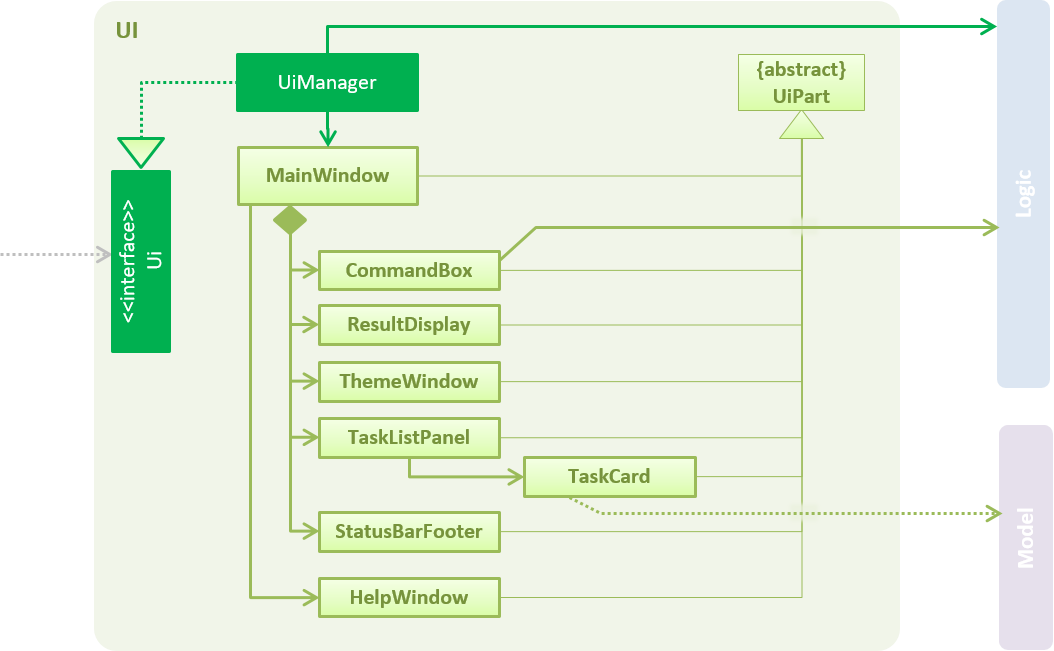

Figure 2.2.1 : Structure of the UI Component

API : Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, TaskListPanel, StatusBarFooter, BrowserPanel etc. All these, including the MainWindow, inherit from the abstract UiPart class.

The UI component uses JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder.
For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• Executes user commands using the Logic component.
• Binds itself to some data in the Model so that the UI can auto-update when data in the Model change.
• Responds to events raised from various parts of the App and updates the UI accordingly.

2.3. Logic component

Author: Hsieh Hsin Han

Figure 2.3.1 : Structure of the Logic Component

API : Logic.java

1. Logic uses the Parser class to parse the user command.
2. This results in a Command object which is executed by the LogicManager.
3. The command execution can affect the Model (e.g. adding a task) and/or raise events.
4. The result of the command execution is encapsulated as a CommandResult object which is passed back to the Ui.

Given below is the Sequence Diagram for interactions within the Logic component for the execute("delete 1") API call.

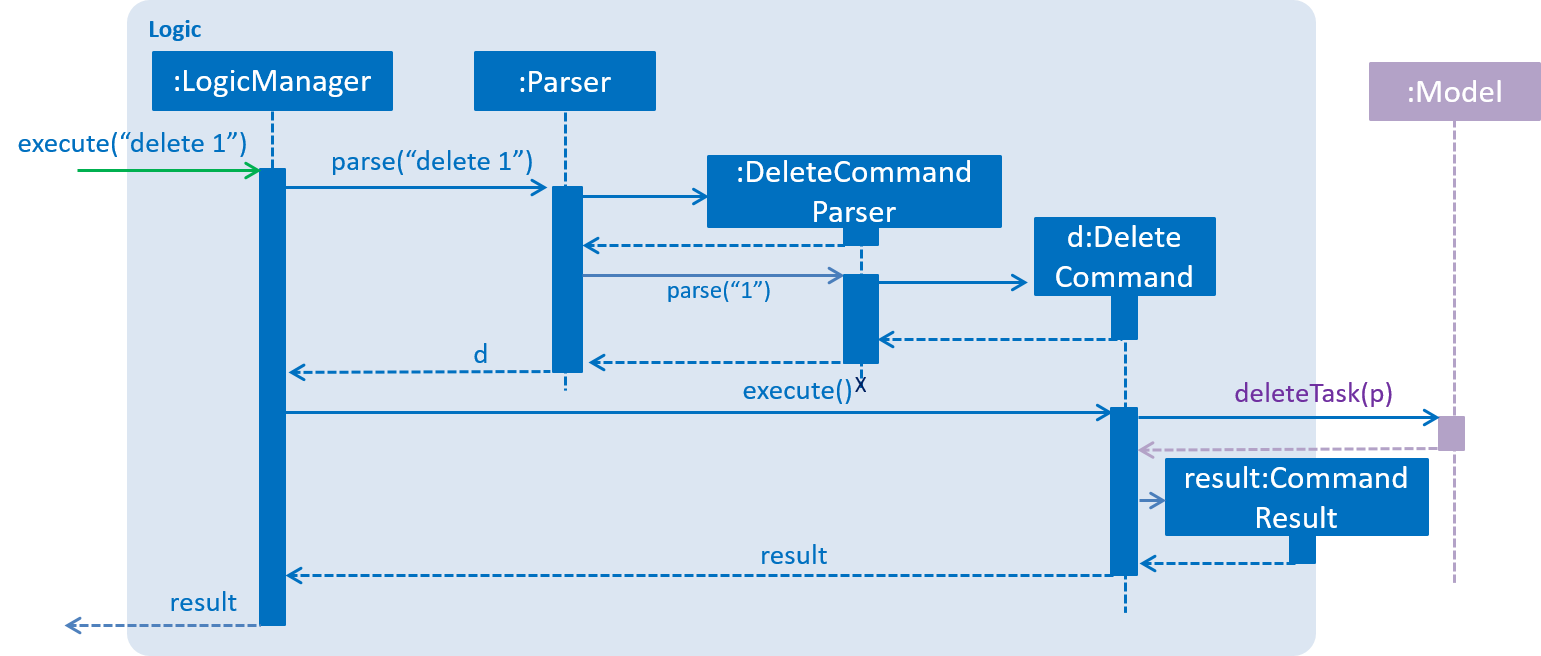

Figure 2.3.1 : Interactions Inside the Logic Component for the delete 1 Command

2.4. Model component

Author: Malik Jabati

Figure 2.4.1 : Structure of the Model Component

API : Model.java

The Model,

• stores the Task Manager data.
• can return a copy of the TaskManager
• updates task list using filters
• stores a history of executed commands
• can undo and redo actions
• can merge entries from another TaskManager list
• exposes an UnmodifiableObservableList<ReadOnlyTask> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• does not depend on any of the other three components.

2.5. Storage component

Author: Muhammad Ali Rizvi

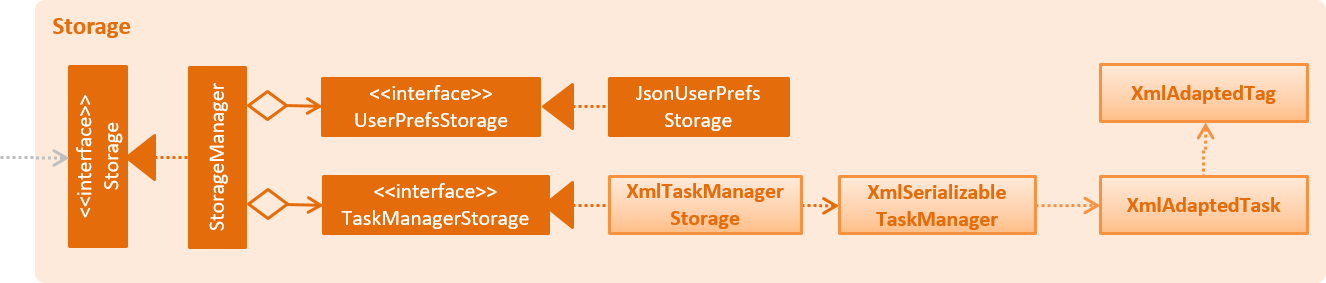

Figure 2.5.1 : Structure of the Storage Component

API : Storage.java

The Storage component,

• can save UserPref objects in json format and read it back.
• can save the Task Manager data in xml format and read it back.

2.6. Common classes

Classes used by multiple components are in the seedu.task.commons package.

3. Implementation

3.1. Logging

We are using java.util.logging package for logging. The LogsCenter class is used to manage the logging levels and logging destinations.

• The logging level can be controlled using the logLevel setting in the configuration file (See Configuration)
• The Logger for a class can be obtained using LogsCenter.getLogger(Class) which will log messages according to the specified logging level
• Currently log messages are output through: Console and to a .log file.

Logging Levels

• SEVERE : Critical problem detected which may possibly cause the termination of the application
• WARNING : Can continue, but with caution
• INFO : Information showing the noteworthy actions by the App
• FINE : Details that is not usually noteworthy but may be useful in debugging e.g. print the actual list instead of just its size

3.2. Configuration

Certain properties of the application can be controlled (e.g App name, logging level) through the configuration file (default: config.json):

4. Testing

Tests can be found in the ./src/test/java folder.

In Eclipse:

• To run all tests, right-click on the src/test/java folder and choose Run as > JUnit Test
• To run a subset of tests, you can right-click on a test package, test class, or a test and choose to run as a JUnit test.

Using Gradle:

• See UsingGradle.md for how to run tests using Gradle.

We have two types of tests:

1. GUI Tests - These are System Tests that test the entire App by simulating user actions on the GUI. These are in the guitests package.

2. Non-GUI Tests - These are tests not involving the GUI. They include,

   1. Unit tests targeting the lowest level methods/classes.
      e.g. seedu.task.commons.UrlUtilTest
   2. Integration tests that are checking the integration of multiple code units (those code units are assumed to be working).
      e.g. seedu.task.storage.StorageManagerTest
   3. Hybrids of unit and integration tests. These test are checking multiple code units as well as how the are connected together.
      e.g. seedu.task.logic.LogicManagerTest

Headless GUI Testing

Thanks to the TestFX library we use, our GUI tests can be run in the headless mode. In the headless mode, GUI tests do not show up on the screen. That means the developer can do other things on the Computer while the tests are running.
See UsingGradle.md to learn how to run tests in headless mode.

4.1. Troubleshooting tests

Problem: Tests fail because NullPointException when AssertionError is expected

• Reason: Assertions are not enabled for JUnit tests. This can happen if you are not using a recent Eclipse version (i.e. Neon or later)
• Solution: Enable assertions in JUnit tests as described here.
  Delete run configurations created when you ran tests earlier.

5. Dev Ops

5.1. Build Automation

See UsingGradle.md to learn how to use Gradle for build automation.

5.2. Continuous Integration

We use Travis CI and AppVeyor to perform Continuous Integration on our projects. See UsingTravis.md and UsingAppVeyor.md for more details.

5.3. Publishing Documentation

See UsingGithubPages.md to learn how to use GitHub Pages to publish documentation to the project site.

5.4. Making a Release

Here are the steps to create a new release.

1. Generate a JAR file using Gradle.
2. Tag the repo with the version number. e.g. v0.1
3. Create a new release using GitHub and upload the JAR file you created.

5.5. Converting Documentation to PDF format

We use Google Chrome for converting documentation to PDF format, as Chrome’s PDF engine preserves hyperlinks used in webpages.

Here are the steps to convert the project documentation files to PDF format.

1. Make sure you have set up GitHub Pages as described in UsingGithubPages.md.
2. Using Chrome, go to the GitHub Pages version of the documentation file.
   e.g. For UserGuide.md, the URL will be https://<your-username-or-organization-name>.github.io/main/docs/UserGuide.html.
3. Click on the Print option in Chrome’s menu.
4. Set the destination to Save as PDF, then click Save to save a copy of the file in PDF format.
   For best results, use the settings indicated in the screenshot below.

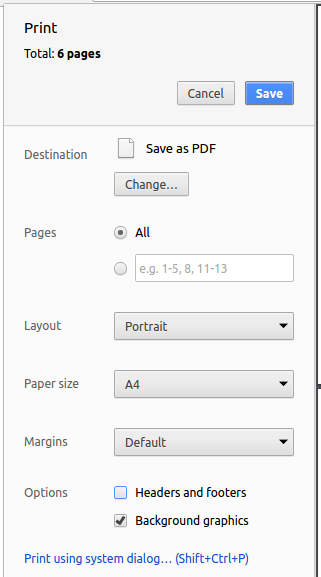

   Figure 5.4.1 : Saving documentation as PDF files in Chrome

5.6. Managing Dependencies

A project often depends on third-party libraries. For example, Task Manager depends on the Jackson library for XML parsing. Managing these dependencies can be automated using Gradle. For example, Gradle can download the dependencies automatically, which is better than these alternatives.
a. Include those libraries in the repo (this bloats the repo size)
b. Require developers to download those libraries manually (this creates extra work for developers)

Appendix A : User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

{More to be added}

Appendix B : Use Cases

(For all use cases below, the System is Yesterday's Tomorrow and the Actor is the user, unless specified otherwise)

Use case: Delete task

MSS

1. User requests to list all tasks
2. Yesterday’s Tomorrow shows a list of tasks
3. User requests to delete a specific task in the list
4. Yesterday’s Tomorrow deletes the task
   Use case ends.

Extensions

2a. The list is empty

Use case ends

3a. The given index is invalid

3a1. Yesterday’s Tomorrow shows an error message
Use case resumes at step 2

Use case: Edit task

MSS

1. User requests a list of all tasks
2. Yesterday’s Tomorrow shows a list of all tasks
3. User requests changes to a certain parameter of a specific task
4. Yesterday’s Tomorrow changes the requested parameter of the task and displays the updated item to the user Use case ends.

Extensions

3a. The given index is invalid

3a1. Yesterday’s Tomorrow shows an error message
Use case resumes at step 2

Use case: Add task or event

MSS

1. User enters the task with optional parameters such as due date, start and end time
2. Yesterday’s Tomorrow parses task and stores it to memory, then displays the task with formatted parameters back to user Use case ends.

Extensions

2a. Parameters are entered in the wrong format

2a1. Yesterday’s Tomorrow shows an error message and an example of correct formatting Use case resumes at step 1

Use case: Undo last action

MSS

1. User enters undo command
2. Yesterday’s Tomorrow display command to be undone, and undoes the command Use case ends.

Extensions

2a. There is no previous action

Use case ends.

Use case: Search tasks

MSS

1. User enters the search command with given parameters to search for
2. Yesterday’s Tomorrow interprets the search command and displays a list of matching tasks Use case ends.

Extensions

2a. No search terms are given

2a1. Yesterday’s Tomorrow shows an error message indicating the user’s error Use case resumes at step 1

{More to be added}

Appendix C : Non Functional Requirements

1. Should work on any mainstream OS as long as it has Java 1.8.0_60 or higher installed.
2. Should be able to hold up to 1000 tasks without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. All classes and public methods should have documentation.
5. All commands should be completed within 200ms.
6. 80% test coverage.

Appendix D : Glossary

Mainstream OS

Windows, Linux, Unix, OS-X

Usage Instructions

list of commands with instructions on how to use them appropriately

System Admin Commands

shell commands used to perform system level tasks

Appendix E : Product Survey

Product Name

Author: 6 Wunderkinder GmbH

Pros:

• Can star tasks so important tasks to be easily found.
• Can parse natural language, ex., “Task A due Wednesday” will be converted to a task with the name Task A and the upcoming Wednesday as the due date.
• Supports subtasks, comments, and attachments for richer task details.
• Has reminders so user can be notified before a due date.
• Entry of tasks is very quick.

Cons:

• No calendar view to schedule tasks

Trello

Author: Fog Creek Software

Pros:

• Organize according to lists within a board (kanban)
• Tags on an item for organization across lists
• Due dates for reminding users when things have to be finished
• Calendar view to see what is due today/this week/this month
• Subtasks (checklists) for breaking down what needs to be done to complete the item
• Can subscribe to changes of a task so users know when collaborators update the tasks
• Task descriptions to provide more information about the task
• Collaborative - multiple people can share boards
• Commenting for conversations about tasks
• Add attachments (e.g. PDFs) for additional information
• Can filter cards for quickly finding tasks based on tags
• Integrates into other apps (e.g. Github, Dropbox, etc.)
• Can email tasks to a board to allow non-collaborators to add tasks (e.g. for customer support)

Cons:

• Takes longer to add complex tasks; no natural language input
• Keyboard shortcuts are slow to move around with
• Cards are narrow so long descriptions have line wraps
• Can get cluttered with too many “done” tasks

Reminder

Author: Apple Inc

Pros:

• Simple UI design, easy to learn to use
• Can set due dates for alert
• Well integrated with notification center on the iPhone (can see tasks and check off for the day)
• Can sync with other apple products
• Has a search filter
• Data can be backed up on iCloud

Cons:

• Only 1 dimension of lists (cannot create lists within lists)
• Can only filter by dates (cannot filter by categories, due dates, etc)
• Very limited application, low customizability
• Cannot integrate with other technologies
• Only available for iPhone users
• Only for a single user (cannot collaborate)

To Do Reminder

Author: App Innovation

Pros:

• Easy and quick to set reminders.
• Customise your reminder in your own way with repeat options minute, hour, daily, weekly, monthly, weekdays, yearly.
• Can set in-advance alerts for Reminders.
• Can choose reminder alert as Notification or Alarm.
• It will remind you with alarm notification with your favourite sound.
• With Speech-to-Text, no need to type to create an Reminder.
• Can smartly handle your reminder notification in case of Driving Car etc for your safe drive.
• Synchronise birthdays and anniversaries of your friends from Facebook, Phonebook, Google Calendar, or add them manually.
• Post birthday wishes with lovely cards on your friends Facebook wall or send them Wishes by Gmail, SMS, WhatsApp.
• With Backup & Restore, you can save all your reminders to SDCard, as mail attachments or upload to Drive.
• You can see all reminder notes on home screen using app widget.
• Can choose Day or Night theme for good visibility.

Cons:

• When a reminder pops up, each time the reminder must be clicked, which then opens the app so it can be marked as complete. This is a long process for the user.
• It does not vibrate with the default notification sound settings, even when the default setting of the phone is set to vibrate.
• You cannot set the notification level of a task. For example, a user may want to use sound for more important notifications while use a silent notification for others.

Just Reminder

Author: AppHouze Co.

Pros:

• Can set ToDo / Task Reminders, Phone Call Reminders, Birthday Reminders, Anniversary Reminders and Bills Reminders with just few clicks.
• With Speech-to-Text, there is no need to type to create an Reminder.
• Customisable repeat intervals like repeat every few minutes, hours, day, specific week days, weeks, months, years and more.
• Customise each reminder with image, specific ring tone or Talking Alarm tone.
• Can set in-advance alerts for Reminders.
• Can customise Date & Time Formats.
• You will not miss any reminder with LED blink (if device supports) and Auto-Snooze feature.
• Can send wishes from Birthday / Anniversary Reminders.
• Smart Bills Reminders will remind you every day till they were ‘PAID’.
• With Backup & Restore, you can save all your reminders to SDCard, as mail attachments or upload to Drive.

Cons:

• It has skipping several reminders near end of the year.
• It does not alert user 5 days in advance of coming bills
• It doesn’t have a pass button when user want to keep something still on your notes but do it at sometime user is not sure in the coming hours or days.
• Alarms, for some strange reason, repeat themselves.
• It should have some options more, e.g. make a copy of the existing reminder.

Remind Me - Task Reminder App

Author: Lucidify Labs

Pros:

• Voice recognition to add reminder.
• Add a reminder easily and quickly.
• Select repeat type for the reminder ; Hourly, daily, weekly.
• Completely customizable snooze time and alarm duration.
• Do not disturb in silent mode.
• Automatically store the completed reminders.
• Disable / enable reminders.
• Search the reminders.
• Auto stop vibration and alarm tone.
• Turn vibration on and off.
• Simple and easy user interface.
• Customizable settings.
• Lightweight, eats less battery.

Cons:

• Alarm would stop ringing all together.
• If a reminder comes due and your away from your phone it stays on screen few minutes then its gone
• It alerts user 10 minutes prior. Then you snooze for 15 minutes.
• Needs alarm to be ringing for long time at least 2 minutes.
• Can’t repeat reminders daily.
